WeMOS: D1 R1 mini RFID

From OnnoWiki
Jump to navigation Jump to search

Download

https://github.com/miguelbalboa/rfid
mv rfid-master.zip Arduino/libraries/
cd Arduino/libraries/
unzip rfid-master.zip


Source

/**
Useful links
https://wiki.wemos.cc/products:d1:d1_mini

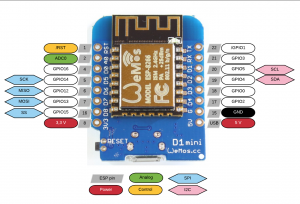

https://cdn-images-1.medium.com/max/1400/1*YKc8KpAfMrlhrOLmNjdRwQ.png (D1 full pinout)
https://github.com/Jorgen-VikingGod/ESP8266-MFRC522
https://github.com/miguelbalboa/rfid
d1 mini rc52 wiring
https://discourse-cdn-sjc1.com/business5/uploads/mydevices/original/2X/e/ecedba79dc05f2c0b02b7fba8b3da2681590a11a.jpg
RST  - D3
MISO - D6
MOSI - D7
SCK  - D5
SDA  - D8
*/

#include "ESP8266WiFi.h"
#include <SPI.h>
#include <MFRC522.h>

constexpr uint8_t RST_PIN =  0;          // Configurable, see typical pin layout above 18
constexpr uint8_t SS_PIN =  15;         // Configurable, see typical pin layout above  16

MFRC522 mfrc522(SS_PIN, RST_PIN);  // Create MFRC522 instance

void setup() {
  Serial.begin(74880);   // Initialize serial communications with the PC
  delay(1000);
  Serial.println("Setup");

  while (!Serial);    // Do nothing if no serial port is opened (added for Arduinos based on ATMEGA32U4)
  SPI.begin();      // Init SPI bus
  mfrc522.PCD_Init();   // Init MFRC522
  mfrc522.PCD_DumpVersionToSerial();  // Show details of PCD - MFRC522 Card Reader details
  Serial.println(F("Scan PICC to see UID, SAK, type, and data blocks..."));
  Serial.println("Setup done");
}

void loop() {
//  Serial.println("Loop...");

// Look for new cards
if ( ! mfrc522.PICC_IsNewCardPresent()) {
  //delay(50);
  return;
}

// Select one of the cards
if ( ! mfrc522.PICC_ReadCardSerial()) {
   //delay(50);
   return;
}

// Show some details of the PICC (that is: the tag/card)
Serial.print(F("Card UID:"));
dump_byte_array(mfrc522.uid.uidByte, mfrc522.uid.size);
Serial.println();

 // Dump debug info about the card; PICC_HaltA() is automatically called
 //mfrc522.PICC_DumpToSerial(&(mfrc522.uid));
  delay(1000);
}
// Helper routine to dump a byte array as hex values to Serial
void dump_byte_array(byte *buffer, byte bufferSize) {
  for (byte i = 0; i < bufferSize; i++) {
    Serial.print(buffer[i] < 0x10 ? " 0" : " ");
    Serial.print(buffer[i], HEX);
  }
}
