WeMOS: D1 R1 mini 7 Segment I2C NTP

Sumber: http://www.esp8266learning.com/tm1637-7-segment-display-example.php

Library TM1637 bisa di ambil di

• https://github.com/avishorp/TM1637

Code

/*

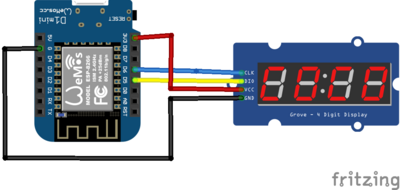

  Wemos Mini	TM1637
  GND	        GND
  3v3	        VCC
  D5	        SDA
  D6	        SCL
*/
#include <TM1637Display.h>

const int CLK = D6; //Set the CLK pin connection to the display
const int DIO = D5; //Set the DIO pin connection to the display

int numCounter = 0;

TM1637Display display(CLK, DIO); //set up the 4-Digit Display.

void setup()
{
 display.setBrightness(0x0a); //set the diplay to maximum brightness
}


void loop()
{
 for(numCounter = 0; numCounter < 1000; numCounter++) //Iterate numCounter
 {
 display.showNumberDec(numCounter); //Display the numCounter value;
 delay(1000);
 }
}

Referensi

• http://www.esp8266learning.com/tm1637-7-segment-display-example.php
