SDR: gqrx Ubuntu 12.04
Jump to navigation
Jump to search
Persiapan
Buat directory
mkdir /usr/local/src/SDR cd /usr/local/src/SDR
Instalasi paket pendukung
sudo apt-get install cmake swig libcppunit-dev python-cheetah doxygen \ libboost-all-dev python-sphinx fftw3-dev python-numpy libqwt-dev \ libusb++-dev libusb-dev libusb-1.0-0-dev libgsl0-dev python-wxgtk2.6 git qtcreator \ libpulse-dev
Install GNURadio
Lakukan
cd /usr/local/src/SDR git clone git://gnuradio.org/gnuradio
Compile
cd /usr/local/src/SDR/gnuradio mkdir build cd build cmake ../ make sudo make install sudo ldconfig
Install rtl_sdr
Lakukan
cd /usr/local/src/SDR git clone git://git.osmocom.org/rtl-sdr.git
Masuk ke directory rtl-sdr & lakukan
cd /usr/local/src/SDR/rtl-sdr/ mkdir build cd build cmake ../
make sudo make install sudo ldconfig
Aturan udev yang penting agar USB dongle terdetek dengan baik perlu di copy menggunakan perintah berikut
cd /usr/local/src/SDR/rtl-sdr/ sudo cp rtl-sdr.rules /etc/udev/rules.d/40-basic-permissions.rules /etc/init.d/udev restart
Kita dapat meng-unplug & replug USB dongle. Cek menggunakan perintah
lsusb
Keluar
Bus 001 Device 002: ID 0bda:0158 Realtek Semiconductor Corp. USB 2.0 multicard reader Bus 006 Device 002: ID 1bcf:0005 Sunplus Innovation Technology Inc. Bus 001 Device 003: ID 0bda:2838 Realtek Semiconductor Corp.
Install gr_osmoSDR
Masuk ke directory
cd /usr/local/src/SDR git clone git://git.osmocom.org/gr-osmosdr
Lakukan
cd /usr/local/src/SDR/gr-osmosdr/ mkdir build cd build/ cmake ../ -Wno-dev
make sudo make install sudo ldconfig
Install gqrx
Masuk ke directory
cd /usr/local/src/SDR git clone https://github.com/csete/gqrx.git
Lakukan
cd /usr/local/src/SDR/gqrx qtcreator ./gqrx.pro
Untuk membuat paket klik Build->Build All. Setelah selesai, masukan SDR dan masuk ke directory build dan jalankan gqrx
cd /usr/local/src/SDR/gqrx-build-desktop-Qt_4_8_1_in_PATH__System__Release/ ./gqrx

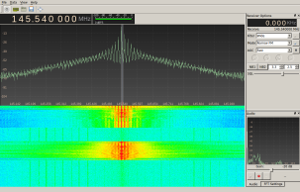

gqrx akan jalan. Tampilannya seperti di bawah ini.
