# Orange: Neural Network

Sumber:https://docs.biolab.si//3/visual-programming/widgets/model/neuralnetwork.html

A multi-layer perceptron (MLP) algorithm with backpropagation.

Inputs

Data: input dataset

Preprocessor: preprocessing method(s)

Outputs

Learner: multi-layer perceptron learning algorithm

Model: trained model

The Neural Network widget uses sklearn’s Multi-layer Perceptron algorithm that can learn non-linear models as well as linear.

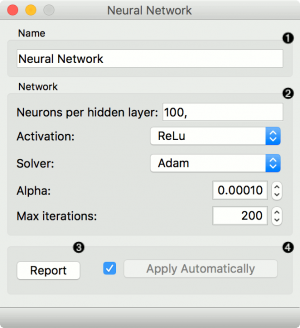

../../_images/NeuralNetwork-stamped.png

A name under which it will appear in other widgets. The default name is “Neural Network”.

Set model parameters:

Neurons per hidden layer: defined as the ith element represents the number of neurons in the ith hidden layer. E.g. a neural network with 3 layers can be defined as 2, 3, 2.

Activation function for the hidden layer:

Identity: no-op activation, useful to implement linear bottleneck

Logistic: the logistic sigmoid function

tanh: the hyperbolic tan function

ReLu: the rectified linear unit function

Solver for weight optimization:

L-BFGS-B: an optimizer in the family of quasi-Newton methods

SGD: stochastic gradient descent

Adam: stochastic gradient-based optimizer

Alpha: L2 penalty (regularization term) parameter

Max iterations: maximum number of iterations

Other parameters are set to sklearn’s defaults.

Produce a report.

When the box is ticked (Apply Automatically), the widget will communicate changes automatically. Alternatively, click Apply.

Examples

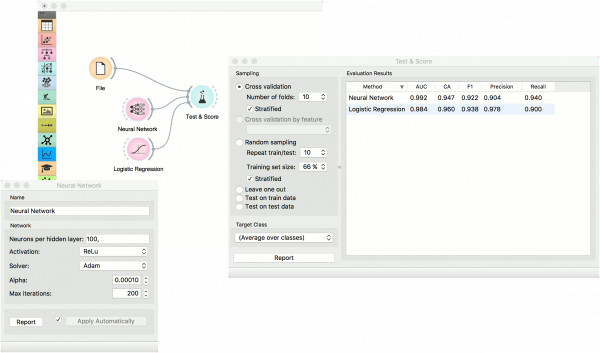

The first example is a classification task on iris dataset. We compare the results of Neural Network with the Logistic Regression.

../../_images/NN-Example-Test.png

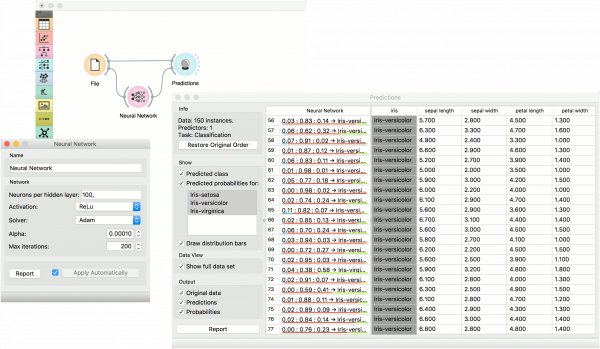

The second example is a prediction task, still using the iris data. This workflow shows how to use the Learner output. We input the Neural Network prediction model into Predictions and observe the predicted values.

../../_images/NN-Example-Predict.png
