# Orange: Logistic Regression

Sumber: https://docs.biolab.si//3/visual-programming/widgets/model/logisticregression.html

The logistic regression classification algorithm with LASSO (L1) or ridge (L2) regularization.

Inputs

Data: input dataset

Preprocessor: preprocessing method(s)

Outputs

Learner: logistic regression learning algorithm

Model: trained model

Coefficients: logistic regression coefficients

Logistic Regression learns a Logistic Regression model from the data. It only works for classification tasks.

../../_images/LogisticRegression-stamped.png

A name under which the learner appears in other widgets. The default name is “Logistic Regression”.

Regularization type (either L1 or L2). Set the cost strength (default is C=1).

Press Apply to commit changes. If Apply Automatically is ticked, changes will be communicated automatically.

Example

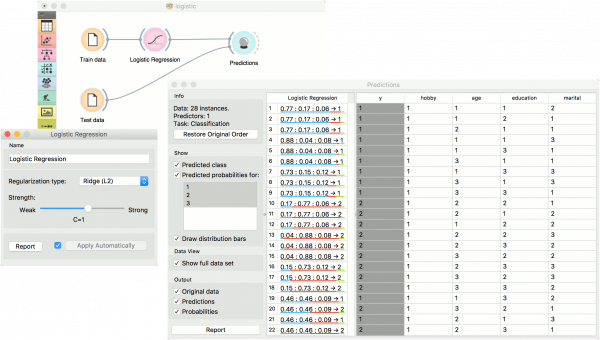

The widget is used just as any other widget for inducing a classifier. This is an example demonstrating prediction results with logistic regression on the hayes-roth dataset. We first load hayes-roth_learn in the File widget and pass the data to Logistic Regression. Then we pass the trained model to Predictions.

Now we want to predict class value on a new dataset. We load hayes-roth_test in the second File widget and connect it to Predictions. We can now observe class values predicted with Logistic Regression directly in Predictions.

../../_images/LogisticRegression-classification.png
