IPv6: Mikrotik: 2 Router di cascade ke cloud

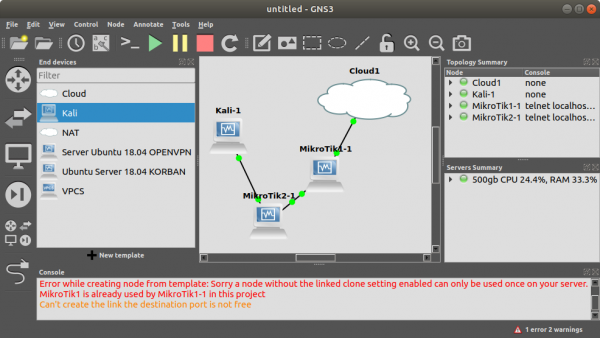

Simulasi 2 Router Mikrotik di Cascade ke cloud

Router 1

# LAN Bridge
/interface bridge
add name=bridge1
/interface bridge port
add bridge=bridge1 interface=ether2
add bridge=bridge1 interface=ether3
add bridge=bridge1 interface=ether4
add bridge=bridge1 interface=ether5
add bridge=bridge1 interface=ether6
add bridge=bridge1 interface=ether7
add bridge=bridge1 interface=ether8
..
..

# Disable RA di semua interface
/ipv6 nd set [ find default=yes ] disabled=yes

# WAN IPv6 automatics
/ipv6 dhcp-client
add add-default-route=yes interface=ether1 request=prefix pool-name=IPv6-pool
# WAN IPv6 static
# /ipv6 address add address=2001:db8:0:1::1/64 interface=ether1 advertise=yes

# LAN setup
/ipv6 address add address=2002:1234:5678::1/64 interface=bridge1 advertise=yes
# /ipv6 address add address=2002:1234:5678::1/48 interface=bridge1 advertise=no

/ipv6 pool add name=IPv6-for-client prefix-length=56 prefix=2002:1234:5678::/48
/ipv6 dhcp-server add name=server1 interface=bridge1 address-pool=IPv6-for-client
/ipv6 nd prefix add prefix=::/64 interface=bridge1 on-link=yes autonomous=no
/ipv6 nd add interface=bridge1 managed-address-configuration=yes other-configuration=yes advertise-dns=yes ra-interval=20s-60s

# Tambahkan Routing Statik ke Mikrotik2
/ipv6 route add dst-address=2002:1234:5678:2::/64 gateway=2002:1234:5678::2

Router 2

# LAN Bridge
/interface bridge
add name=bridge1
/interface bridge port
add bridge=bridge1 interface=ether2
add bridge=bridge1 interface=ether3
add bridge=bridge1 interface=ether4
add bridge=bridge1 interface=ether5
add bridge=bridge1 interface=ether6
add bridge=bridge1 interface=ether7
add bridge=bridge1 interface=ether8
..
..

# Disable RA di semua interface
/ipv6 nd set [ find default=yes ] disabled=yes

# WAN IPv6 automatics
/ipv6 dhcp-client
add add-default-route=yes interface=ether1 request=prefix pool-name=IPv6-pool

# WAN IPv6 static
# /ipv6 address add address=2002:1234:5678:2::1/54 interface=ether1 advertise=no
/ipv6 address add address=2002:1234:5678::2/64 interface=ether1 advertise=yes

# LAN setup
/ipv6 address add address=2002:1234:5678:2::1/64 interface=bridge1 advertise=yes

# ND
/ipv6 nd add interface=bridge1 ra-interval=20s-60s
