Arduino: Fading

Code

/*
  Fading
  This example shows how to fade an LED using the analogWrite() function.

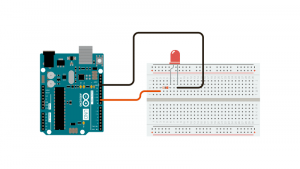

  The circuit:
  - LED attached from digital pin 9 to ground.

  created 1 Nov 2008
  by David A. Mellis
  modified 30 Aug 2011
  by Tom Igoe
  This example code is in the public domain.
  http://www.arduino.cc/en/Tutorial/Fading
*/

int ledPin = 9;    // LED connected to digital pin 9

void setup() {
  // nothing happens in setup
}

void loop() {
  // fade in from min to max in increments of 5 points:
  for (int fadeValue = 0 ; fadeValue <= 255; fadeValue += 5) {
    // sets the value (range from 0 to 255):
    analogWrite(ledPin, fadeValue);
    // wait for 30 milliseconds to see the dimming effect
    delay(30);
  }

  // fade out from max to min in increments of 5 points:
  for (int fadeValue = 255 ; fadeValue >= 0; fadeValue -= 5) {
    // sets the value (range from 0 to 255):
    analogWrite(ledPin, fadeValue);
    // wait for 30 milliseconds to see the dimming effect
    delay(30);
  }
}
