Antenna: Rancangan TRAP-dipole 40m 20m 15m 10m

Sumber: http://degood.org/coaxtrap/

Trap

Potongan Trap

Tabel 1. Spesifikasi Trap

band	rancangan frekuensi	trap form	panjang coax (shield intact)	gulungan coax (approx)	frekuensi trap
10 meters	28.85 MHz	1.375" OD (3/4" PVC coupling)	51.4 cm	4	28.5 MHz, 28.7 MHz
15 meters	21.225 MHz	1.375" OD (3/4" PVC coupling)	66 cm	5.25	21.1 MHz
20 meters	14.175 MHz	1.625" OD (1" PVC coupling)	90.2 cm	6	14.2 MHz
30 meters	10.125 MHz	2.0" OD (1.25" PVC coupling)	117.5 cm	6.5	10.12 MHz
40 meters	7.15 MHz	2.25" OD (1.5" PVC coupling)	154.9 cm	7.75	7.15 MHz

Bentuk Antenna

Antenna 80m 40m 30m 20m 15m 10m

6-band antenna dimensions

 95" = 241.3 cm
 13" =  33.0 cm
 30" =  76.2 cm
 24" =  61.0 cm
 42" = 106.7 cm
140" = 355.6 cm

Panjang s/d 40m band = 518.2 cm
Panjang s/d 80m band = 873.8 cm

Antenna 80m 40m 20m 15m 10m

5-band antenna dimensions

 95" = 241.3 cm
 13" =  33.0 cm
 30" =  76.2 cm
101" = 256.5 cm
175" = 444.5 cm

Panjang s/d 40m band =  607 cm
Panjang s/d 80m band = 1051.5 cm

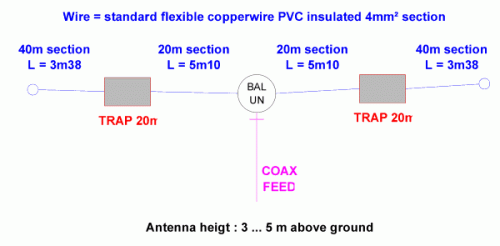

Antenna 40m & 20m

Perhitungan Trap Dengan Software

Trap 3.600MHz

Trap 3.800MHz

Trap 7.100MHz

Trap 7.200MHz

Trap 14.150MHz

Trap 14.250MHz

Trap 21.150MHz

Trap 21.250MHz

Trap 28.150MHz

Trap 28.250MHz

WARC Band

Trap 5.300MHz

Trap 10.150MHz

Trap 18.110MHz
