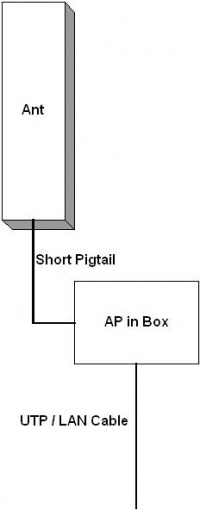

konfigurasi instalasi antenna WiFi Outdoor

Secara umum instalasi peralatan WiFi di Outdoor terlihat pada gambar di samping. Terdiri dari:

  1. Antenna outdoor.
  2. Braket pemegang antenna.
  3. Pigtail pendek
  4. Access Point.
  5. Kotak Plastik.
  6. Kabel UTP

Perhatikan pada instalasi ini kabel coax yang panjang sama sekali tidak digunakan. Biasakan menggunakan kabel pigtail pendek saja. Pigtail yang digunakan sekitar 0.5-1 meter saja panjangnya.
