Mikrotik: OpenVPN - Server ke PC
Sumber: https://www.medo64.com/2016/12/simple-openvpn-server-on-mikrotik/

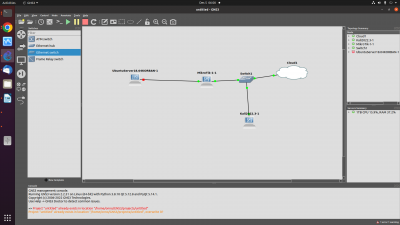

Asumsi kita membuat sambungan OpenVPN dengan Server di balik Mikrotik sebagai berikut,
Setup Server Mikrotik Biasa
/ip dhcp-client print /ip dhcp-client add interface=ether1 disable=no /interface bridge add name=bridge1 /interface bridge port add bridge=bridge1 interface=ether2 add bridge=bridge1 interface=ether3 add bridge=bridge1 interface=ether4 add bridge=bridge1 interface=ether5 add bridge=bridge1 interface=ether6 add bridge=bridge1 interface=ether7 add bridge=bridge1 interface=ether8 /ip address add interface=bridge1 address=192.168.100.1/24 /ip route add gateway=bridge1 /ip dns set servers=1.1.1.1 /ip dns set allow-remote-request=yes /ip firewall nat add chain=srcnat out-interface=ether1 action=masquerade /ip firewall nat print /ip dhcp-server setup
Certificate
Certificate Generate
/certificate add name=ca-template common-name=example.com days-valid=3650 key-size=2048 key-usage=crl-sign,key-cert-sign add name=server-template common-name=*.example.com days-valid=3650 key-size=2048 key-usage=digital-signature,key-encipherment,tls-server add name=client-template common-name=client.example.com days-valid=3650 key-size=2048 key-usage=tls-client add name=client1-template common-name=client1.example.com days-valid=3650 key-size=2048 key-usage=tls-client
Certificate Sign
SATU PER SATU, jangan COPAS Sekaligus. Proses signing akan membutuhkan waktu, harap sabar.
/certificate sign ca-template name=ca-certificate sign server-template name=server-certificate ca=ca-certificate sign client-template name=client-certificate ca=ca-certificate sign client1-template name=client1-certificate ca=ca-certificate
Certificate Trust
/certificate set ca-certificate trusted=yes set server-certificate trusted=yes
Certificate Export
/certificate export-certificate ca-certificate export-passphrase="" export-certificate client-certificate export-passphrase=123456789 export-certificate client1-certificate export-passphrase=123456789
Cek bahwa sudah di generate menggunakan
/file print
OpenVPN Server di Mikrotik
OpenVPN Pool Address
/ip pool add name="vpn-pool" ranges=192.168.8.10-192.168.8.99
OpenVPN user
/ppp profile add name="vpn-profile" use-encryption=yes local-address=192.168.8.250 dns-server=192.168.8.250 remote-address=vpn-pool secret add name=user profile=vpn-profile password=123456 secret add name=user1 profile=vpn-profile password=123456 secret add name=user2 profile=vpn-profile password=123456 secret add name=onno profile=vpn-profile password=123456
OpenVPN Enable
/interface ovpn-server server set default-profile=vpn-profile certificate=server-certificate require-client-certificate=yes auth=sha1 cipher=aes128,aes192,aes256 enabled=yes
Set Firewall Mikrotik
Jika dibutuhkan kita bisa buka access port 1194
/ip firewall filter add chain=input protocol=tcp dst-port=1194 action=accept place-before=0 comment="Allow OpenVPN"
atau
/ip firewall filter add chain=input protocol=tcp dst-port=1194 action=accept comment="Allow OpenVPN"
PC Kali Linux
Download crt & key
cd /etc/openvpn/client
ftp (IP OpenVPN Mikrotik) 192.168.0.219 username admin password mget * quit
Edit client.ovpn
client dev tun proto tcp # remote (IP Mikrotik OpenVPN) 1194 remote 192.168.0.219 1194 resolv-retry infinite nobind persist-key persist-tun ca /etc/openvpn/client/cert_export_ca-certificate.crt cert /etc/openvpn/client/cert_export_client-certificate.crt key /etc/openvpn/client/cert_export_client-certificate.key remote-cert-tls server cipher AES-256-CBC auth SHA1 auth-user-pass route 192.168.100.0 255.255.255.0 # Paksakan routing di belakang Mikrotik
PC Run OpenVPN
cd /etc/openvpn/client sudo openvpn --config client.ovpn
Enter Auth Username: user Enter Auth Password: 123456 Enter Private Key Password: 123456789
Interface tun tambahan
Di CLI Kali Linux, ketik
ifconfig
Jika OpenVPN Berhasil di aktifkan, akan muncul
tun0: flags=4305<UP,POINTOPOINT,RUNNING,NOARP,MULTICAST> mtu 1500
inet 192.168.8.99 netmask 255.255.255.0 destination 192.168.8.99
inet6 fe80::959a:7bd0:a3f3:3cc6 prefixlen 64 scopeid 0x20<link>
unspec 00-00-00-00-00-00-00-00-00-00-00-00-00-00-00-00 txqueuelen 500 (UNSPEC)
RX packets 0 bytes 0 (0.0 B)
RX errors 0 dropped 0 overruns 0 frame 0
TX packets 22 bytes 2384 (2.3 KiB)
TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0
Tambahkan Routing ke LAN di Belakang Mikrotik
route add -net 192.168.100.0/24 gw 192.168.8.250 dev tun0
PC Client
PC Download File
Bisa di download ke PC / client menggunakan ftp, file yang dibutuhkan adalah
cert_export_ca-certificate.crt cert_export_client-certificate.crt cert_export_client-certificate.key
Nantinya bisa di rename menjadi
ca.crt, client.crt, & client.key
dengan ftp
cd /etc/openvpn/client ftp 192.168.88.198 username admin password
mget * quit
cd /etc/openvpn/client mv cert_export_ca-certificate.crt ca.crt mv cert_export_client1-certificate.crt client1.crt mv cert_export_client1-certificate.key client1.key mv cert_export_client-certificate.crt client.crt mv cert_export_client-certificate.key client.key
PC Buat Konfigurasi ovpn
Buat client.ovpn
cd /etc/openvpn/client/ sudo vi client.ovpn
client dev tun proto tcp # remote (IP OpenVPN Mikrotik) 1194 remote 192.168.0.219 1194 resolv-retry infinite nobind persist-key persist-tun ca ca.crt cert client.crt key client.key remote-cert-tls server cipher AES-128-CBC auth SHA1 auth-user-pass # redirect-gateway def1
PC Run OpenVPN
cd /etc/openvpn/client sudo openvpn --config client.ovpn
Enter Auth Username: user Enter Auth Password: password Enter Private Key Password: 12345678
PC Cek
Pastikan ada interface tun
ifconfig
tun0: flags=4305<UP,POINTOPOINT,RUNNING,NOARP,MULTICAST> mtu 1500
inet 192.168.8.99 netmask 255.255.255.0 destination 192.168.8.99
inet6 fe80::76b3:bffd:1b3a:b9ea prefixlen 64 scopeid 0x20<link>
unspec 00-00-00-00-00-00-00-00-00-00-00-00-00-00-00-00 txqueuelen 100 (UNSPEC)
RX packets 1275 bytes 1208481 (1.2 MB)
RX errors 0 dropped 0 overruns 0 frame 0
TX packets 1328 bytes 148649 (148.6 KB)
TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0
Pastikan ada routing
netstat -nr
192.168.8.0 0.0.0.0 255.255.255.0 U 0 0 0 tun0
Ubah client.key
Langkah yang sedikit mengganggu adalah meminta kata private key password (selain username/password). Mikrotik tidak mengizinkan export key tanpa itu tapi untungnya kita bisa menggunakan OpenSSL untuk mengubahnya:
openssl rsa -in client.key -out client.key
Masukkan password untuk private key untuk client.key: 123456789 menulis kunci RSA
